Ellipsoidal Dish Template

Ellipsoidal Dish Template is a professional fabrication tool for calculating coordinate points used to create template layouts for ellipsoidal pressure vessel heads and dish ends.

The app helps fabrication engineers, vessel fabricators, layout technicians, mechanical engineers, and workshop professionals generate accurate profile marking points for ellipsoidal head fabrication.

Instead of manually calculating numerous profile coordinates, enter the required dimensions, select the number of development lines, and generate the marking information needed to create an ellipsoidal head template.

What This App Does

The app calculates coordinate points along the elliptical profile of an ellipsoidal head.

These points can be used to:

• Create an ellipsoidal head template
• Mark the profile on plate or sheet material
• Check the shape of a fabricated head
• Assist with fabrication layout
• Support plate cutting and forming operations

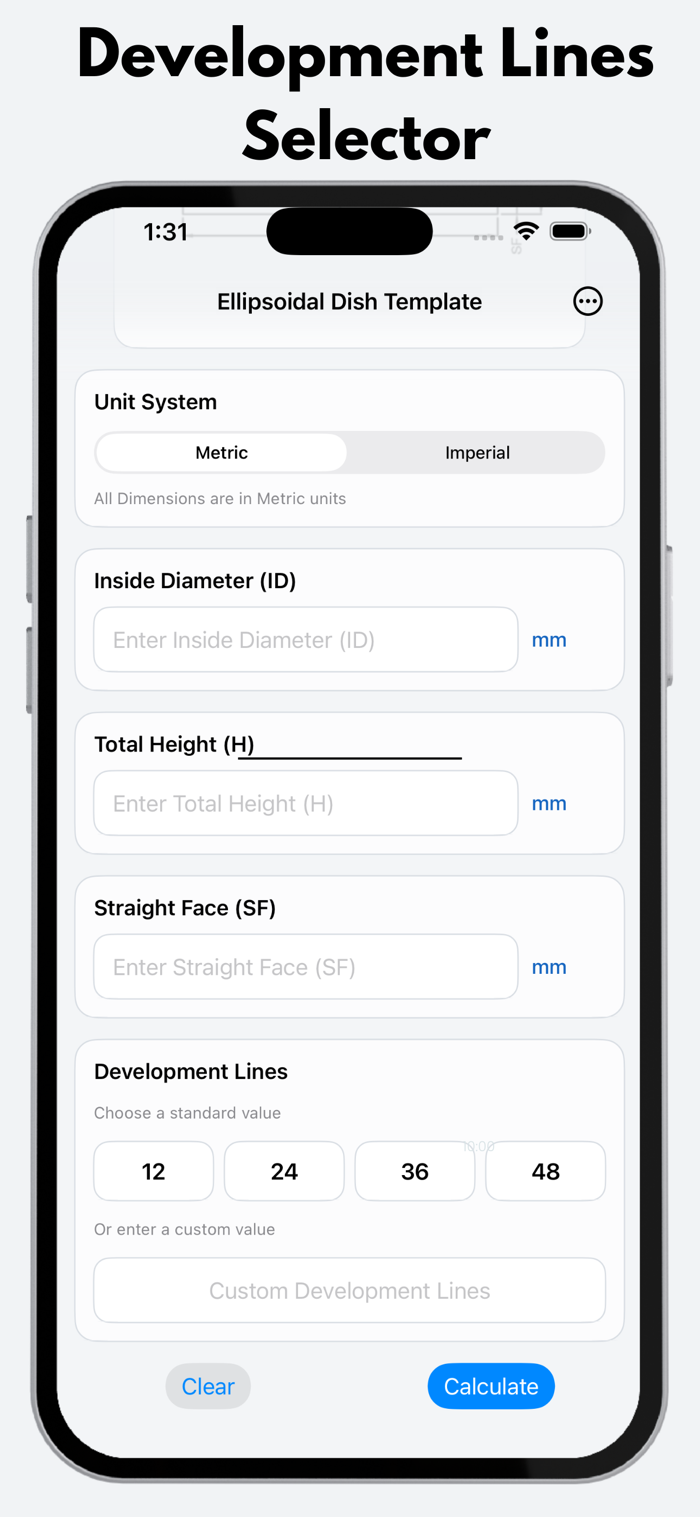

Development Lines

Select from the available development line options or enter a custom number of development lines according to your fabrication requirements.

A greater number of development lines can provide more marking points and may improve the approximation of the template profile.

The calculator generates the marking information for one half-section of the profile. Because the opposite half is symmetrical, the same marking dimensions can be used to complete the other half.

Easy Workflow

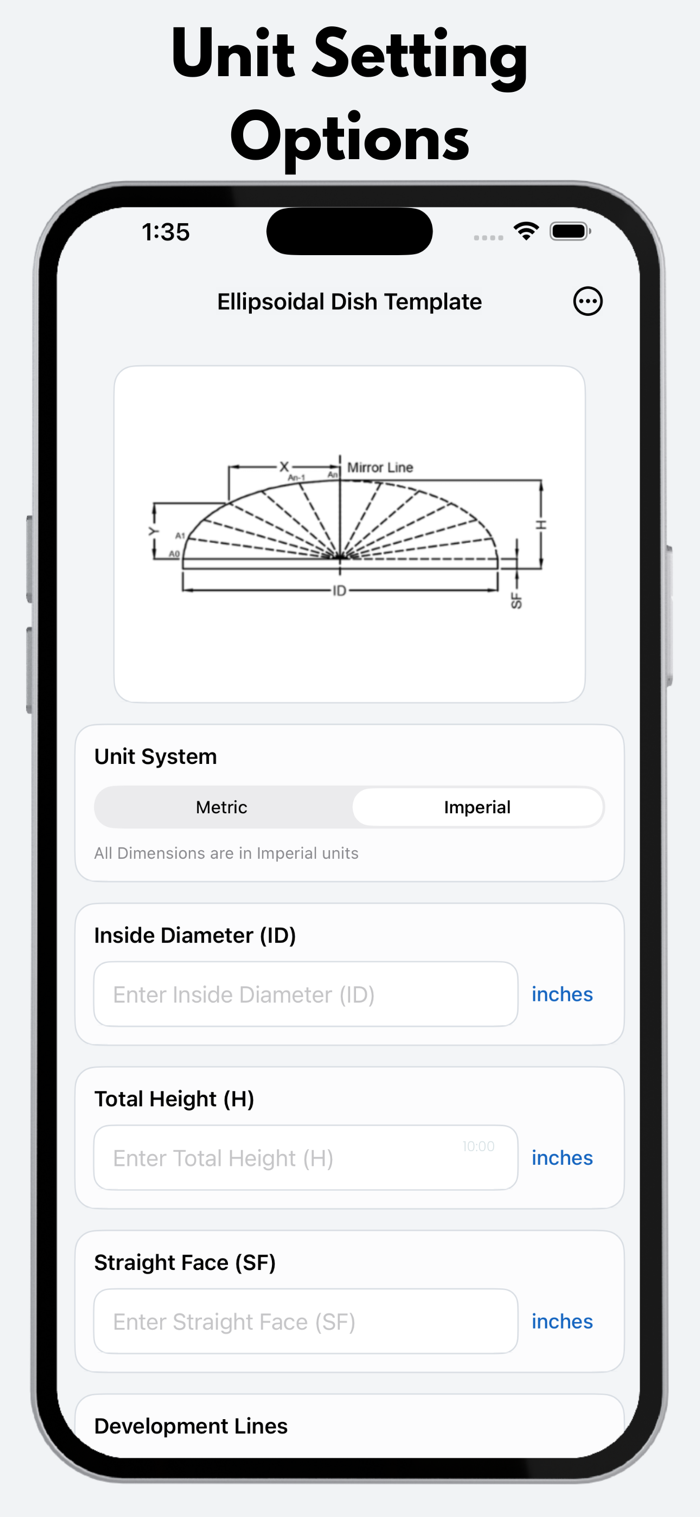

Select the required unit system.
Review the input illustration and dimension notation.
Enter the required ellipsoidal head dimensions.
Select the desired number of development lines.
Tap Calculate.
View the calculated coordinate and marking dimensions.
Transfer the dimensions to your template or plate for layout marking.
Features

• Ellipsoidal head template development
• Ellipsoidal dish end profile marking
• Coordinate point calculation
• Template layout dimensions
• Custom development line count
• Multiple development line options
• Half-profile marking calculation
• Symmetrical profile development
• Fabrication-friendly output
• Metric and Imperial unit support
• Dimensions in mm or inches
• Automatic unit conversion
• Simple and professional interface
• Fast calculations
• No internet connection required
• No distracting advertisements

Fabrication Applications

Ellipsoidal Dish Template is useful for:

• Pressure Vessel Fabrication
• Process Equipment Manufacturing
• Heat Exchanger Fabrication
• Storage Tank Manufacturing
• Dish End Fabrication
• Ellipsoidal Head Fabrication
• Sheet Metal Layout
• Plate Marking
• Template Making
• Industrial Fabrication

Designed For

• Fabrication Engineers
• Pressure Vessel Engineers
• Mechanical Engineers
• Production Engineers
• Fabrication Fitters
• Layout Technicians
• Workshop Supervisors
• Vessel Fabricators
• Process Equipment Manufacturers
• Engineering Students

Ellipsoidal Dish Template simplifies the process of generating profile coordinates for ellipsoidal head template marking. It saves calculation time, reduces repetitive manual work, and provides convenient layout information for day-to-day fabrication activities.

For best results, select an appropriate number of development lines for the required template accuracy. The actual accuracy of the physical template also depends on the selected divisions, marking technique, material, and fabrication process.
